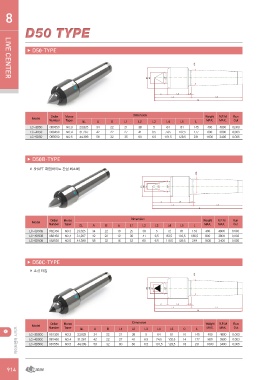

P. 914
LIVE CENTER8
D50 TYPE
▶ D50-TYPE
Model Order Morse GL A B Dimension Weight R.P.M Run
Number Taper L1 L2 L3 L4 L5 L MAX. MAX. Out
LC-3D50 080350 NO.3 23.825 34 22 21 38 5 64 81 145 400 4800 0.003
LC-4D50 080450 NO.4 31.267 42 22 27 41 6.5 74.5 102.5 177 800 3800 0.003
LC-5D50 080550 NO.5 44.399 58 32 35 60 6.5 101.5 129.5 231 1600 3400 0.005
▶ D50B-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
Model Order Morse Dimension Weight R.P.M Run
Number Taper
GL A B b L1 L2 L3 L4 L5 L MAX. MAX. Out
LC-3D50B 082350 NO.3 23.825 34 22 10 25 38 5 72 81 153 400 4800 0.003
LC-4D50B 082450 NO.4 31.267 42 22 12 36 41 6.5 83.5 102.5 186.5 800 3800 0.003
LC-5D50B 082550 NO.5 44.399 58 32 16 53 60 6.5 119.5 129.5 249 1600 3400 0.005
▶ D50C-TYPE
※ 초경 타입
라이브센터 시리즈 Model Order Morse GL A Dimension Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3D50C 081350 NO.3 23.825 34 22 21 38 5 64 81 10 145 400 4800 0.003
LC-4D50C 081450 NO.4 31.267 42 22 27 41 6.5 74.5 102.5 14 177 800 3800 0.003
LC-5D50C 081550 NO.5 44.399 58 32 60 60 6.5 101.5 129.5 18 231 1600 3400 0.005
914
