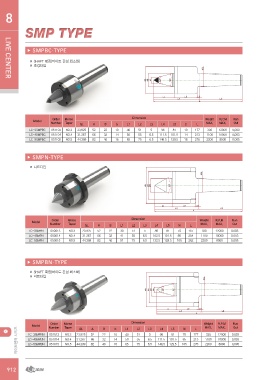

LIVE CENTER8
SMP TYPE

▶ SMPBC-TYPE

※ SHAFT 확장(바이트 간섭 최소화)
※ 초경타입

Model Order Morse GL A B Dimension Weight R.P.M Run
Number Taper b L1 L2 L3 L4 L5 C L MAX. MAX. Out

LC-3SMPBC 051103 NO.3 23.825 52 22 10 40 51 5 96 81 10 177 330 12000 0.003
LC-4SMPBC 051104 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 14 213 1100 10000 0.003
LC-5SMPBC 051105 NO.5 44.399 82 40 16 65 75 6.5 146.5 129.5 18 276 2200 8000 0.005

▶ SMPN-TYPE

※ 너트타입

Model Order Morse Dimension Weight R.P.M Run
B L1 L2 L3 L4 L5 N Out
Number Taper GL A L MAX. MAX.

LC-3SMPN 050013 NO.3 23.825 52 22 30 51 5 86 81 70 167 330 12000 0.003
LC-4SMPN 050014 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 85 204 1100 10000 0.003
LC-5SMPN 050015 NO.5 44.399 82 40 51 75 6.5 132.5 129.5 105 262 2200 8000 0.005

▶ SMPBN-TYPE

※ SHAFT 확장(바이트 간섭 최소화)
※ 너트타입

라이브센터 시리즈 Model Order Morse GL A B Dimension Weight R.P.M Run
Number Taper b L1 L2 L3 L4 L5 N L MAX. MAX. Out

LC-3SMPBN 051013 NO.3 23.825 52 22 10 40 51 5 96 81 70 177 330 12000 0.003
LC-4SMPBN 051014 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 85 213 1100 10000 0.003
LC-5SMPBN 051015 NO.5 44.399 82 40 16 65 75 6.5 146.5 129.5 105 276 2200 8000 0.005
