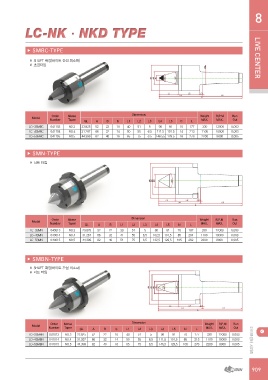

LC-NKㆍNKD TYPE 8

▶ SMBC-TYPE LIVE CENTER

※ SHAFT 확장(바이트 간섭 최소화)
※ 초경타입

Model Order Morse Dimension Weight R.P.M Run

Number Taper GL A B b L1 L2 L3 L4 L5 C L MAX. MAX. Out

LC-3SMBC 041103 NO.3 23.825 52 22 10 40 51 5 96 81 10 177 330 12000 0.003
LC-4SMBC 041104
LC-5SMBC 041105 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 14 213 1100 10000 0.003

NO.5 44.399 82 40 16 65 75 6.5 146.55 129.5 16 276 2200 8000 0.005

▶ SMN-TYPE

※ 너트 타입

Model Order Morse Dimension Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 N Out
GL A L MAX. MAX.

LC-3SMN 040013 NO.3 23.825 52 22 30 51 5 86 81 70 167 330 12000 0.003

LC-4SMN 040014 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 85 204 1100 10000 0.003

LC-5SMN 040015 NO.5 44.399 82 40 51 75 6.5 132.5 129.5 105 262 2200 8000 0.005

▶ SMBN-TYPE

※ SHAFT 확장(바이트 간섭 최소화)
※ 너트 타입

Model Order Morse GL A B Dimension Weight R.P.M Run 라이브센터 시리즈
Number Taper b L1 L2 L3 L4 L5 N L MAX. MAX. Out

LC-3SMBN 041013 NO.3 23.825 52 22 10 40 51 5 96 81 70 177 330 12000 0.003
LC-4SMBN 041014 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 85 213 1100 10000 0.003
LC-5SMBN 041015 NO.5 44.399 82 40 16 65 75 6.5 146.5 129.5 105 276 2200 8000 0.005

909
