P. 906

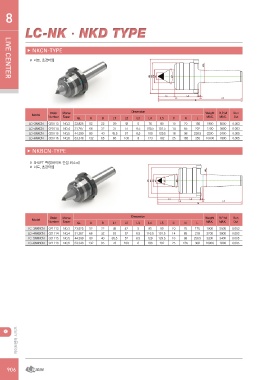

LIVE CENTER8
LC-NKㆍNKD TYPE
▶ NKCN-TYPE
※ 너트, 초경타입
Model Order Morse GL A Dimension N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3NKCN 020113 NO.3 23.825 52 22 29 42 5 76 80 10 70 156 1900 5000 0.003
LC-4NKCN 020114 NO.4 31.267 66 32 37 57 6.5 100.5 101.5 14 85 202 2700 3800 0.003
LC-5NKCN 020115 NO.5 44.399 80 40 45.5 57 6.5 109 129.5 18 98 238.5 3200 3400 0.005
LC-6NKCN 020116 NO.6 63.348 132 65 65 100 8 173 182 25 165 355 10000 1800 0.005
▶ NKBCN-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
※ 너트, 초경타입
Model Order Morse GL A Dimension N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3NKBCN 021113 NO.3 23.825 52 22 48 42 5 95 80 10 70 175 1900 5000 0.003
LC-4NKBCN 021114 NO.4 31.267 66 32 53 57 6.5 116.5 101.5 14 85 218 2700 3800 0.003
LC-5NKBCN 021115 NO.5 44.399 80 40 65.5 57 6.5 129 129.5 18 98 258.5 3200 3400 0.005
LC-6NKBCN 021116 NO.6 63.348 132 65 78 100 8 186 182 25 165 368 10000 1800 0.005
라이브센터 시리즈
906
