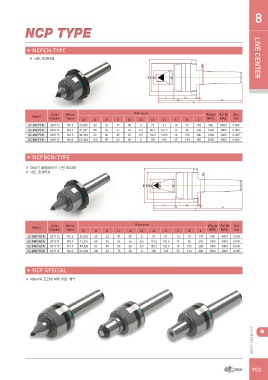

P. 903
NCP TYPE 8
▶ NCPCN-TYPE LIVE CENTER
※ 너트, 초경타입
Model Order Morse GL A Dimension N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3NCPCN 030113 NO.3 23.825 50 22 27 45 5 77 81 10 70 158 800 4800 0.003
LC-4NCPCN 030114 NO.4 31.267 66 32 37 55 6.5 98.5 101.5 14 85 200 1300 3800 0.003
LC-5NCPCN 030115 NO.5 44.399 82 40 45 65 6.5 116.5 129.5 18 105 246 1900 3400 0.005
LC-6NCPCN 030116 NO.6 63.384 100 45 65 80 8 153 182 25 130 335 2500 3000 0.005
▶ NCPBCN-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
※ 너트, 초경타입
Model Order Morse GL A Dimension L5 C N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L MAX. MAX. Out
LC-3NCPBCN 031113 NO.3 23.825 50 22 47 45 5 97 81 10 70 178 800 4800 0.003
LC-4NCPBCN 031114 NO.4 31.267 66 32 53 55 6.5 114.5 101.5 14 85 216 1300 3800 0.003
LC-5NCPBCN 031115 NO.5 44.399 82 40 65 65 6.5 136.5 129.5 16 105 266 1900 3400 0.005
LC-6NCPBCN 031116 NO.6 63.384 100 45 78 80 8 166 182 25 130 348 2500 3000 0.005
▶ NCP SPECIAL
※ 사용자의 조건에 따라 주문. 제작
라이브센터 시리즈
903
