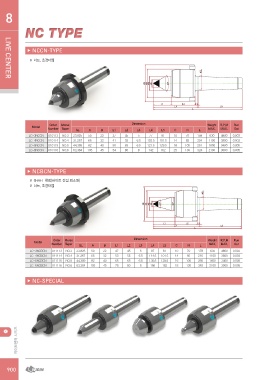

P. 900
LIVE CENTER8
NC TYPE
▶ NCCN-TYPE
※ 너트, 초경타입
Model Order Morse GL A Dimension N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3NCCN 010113 NO.3 23.825 50 22 27 45 5 77 81 10 70 158 630 4800 0.003
LC-4NCCN 010114 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 14 85 204 1100 3800 0.003
LC-5NCCN 010115 NO.5 44.399 82 40 50 65 6.5 121.5 129.5 18 105 251 1600 3400 0.005
LC-6NCCN 010116 NO.6 63.384 105 45 54 80 8 142 182 25 130 324 2100 3000 0.005
▶ NCBCN-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
※ 너트, 초경타입
Model Order Morse GL A Dimension N Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3NCBCN 011113 NO.3 23.825 50 22 47 45 5 97 81 10 70 178 630 4800 0.003
LC-4NCBCN 011114 NO.4 31.267 66 32 53 55 6.5 114.5 101.5 14 85 216 1100 3800 0.003
LC-5NCBCN 011115 NO.5 44.399 82 40 65 65 6.5 136.5 129.5 16 105 266 1600 3400 0.005
LC-6NCBCN 011116 NO.6 63.384 105 45 78 80 8 166 182 18 130 348 2100 3000 0.005
▶ NC-SPECIAL
라이브센터 시리즈
900
