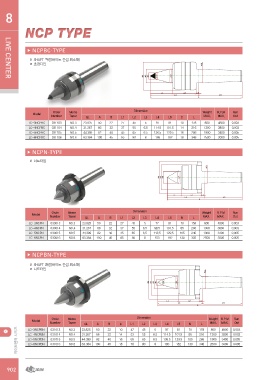

LIVE CENTER8
NCP TYPE

▶ NCPBC-TYPE

※ SHAFT 확장(바이트 간섭 최소화)
※ 초경타입

Model Order Morse Dimension Weight R.P.M Run

Number Taper GL A B L1 L2 L3 L4 L5 C L MAX. MAX. Out

LC-3NCPBC 031103 NO.3 23.825 50 22 27 45 5 97 81 10 178 800 4800 0.003
LC-4NCPBC 031104 NO.4 31.267 66 32 37 55 6.5 114.5 101.5 14 216 1300 3800 0.003
LC-5NCPBC 031105 NO.5 44.399 82 40 45 65 6.5 136.5 129.5 16 266 1900 3400 0.005
LC-6NCPBC 031106 NO.6 63.384 100 45 65 80 8 166 182 18 348 2500 3000 0.005

▶ NCPN-TYPE

※ 너트타입

Model Order Morse Dimension Weight R.P.M Run
B L1 L2 L3 L4
Number Taper GL A L5 N L MAX. MAX. Out

LC-3NCPN 030013 NO.3 23.825 50 22 27 45 5 77 81 70 158 800 4800 0.003

LC-4NCPN 030014 NO.4 31.267 66 32 37 55 6.5 98.5 101.5 85 200 1300 3800 0.003

LC-5NCPN 030015 NO.5 44.399 82 40 45 65 6.5 116.5 129.5 105 246 1900 3400 0.005

LC-6NCPN 030016 NO.6 63.384 100 45 65 80 8 153 182 130 335 2500 3000 0.005

▶ NCPBN-TYPE

※ SHAFT 확장(바이트 간섭 최소화)
※ 너트타입

Model Order Morse Dimension Weight R.P.M Run
b L1 L2 L3 L4 L5 N L MAX. MAX. Out
Number Taper GL A B

라이브센터 시리즈 LC-3NCPBN 031013 NO.3 23.825 50 22 10 47 45 5 97 81 70 178 800 4800 0.003

LC-4NCPBN 031014 NO.4 31.267 66 32 14 53 55 6.5 114.5 101.5 85 216 1300 3800 0.003

LC-5NCPBN 031015 NO.5 44.399 82 40 16 65 65 6.5 136.5 129.5 105 266 1900 3400 0.005

LC-6NCPBN 031016 NO.6 63.384 100 45 18 78 80 8 166 182 130 348 2500 3000 0.005

902
