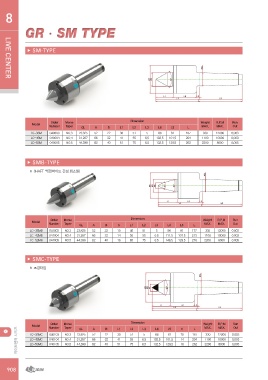

P. 908
LIVE CENTER8
GRㆍSM TYPE
▶ SM-TYPE
Model Order Morse Dimension Weight R.P.M Run
Number Taper L1 L2 L3 L4 L5
GL A B L MAX. MAX. Out
LC-3SM 040003 NO.3 23.825 52 22 30 51 5 86 81 167 330 12000 0.003
1100 10000 0.003
LC-4SM 040004 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 204 2200 8000 0.005
LC-5SM 040005 NO.5 44.399 82 40 51 75 6.5 132.5 129.5 262
▶ SMB-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
Model Order Morse Dimension Weight R.P.M Run
Number Taper
GL A B b L1 L2 L3 L4 L5 L MAX. MAX. Out
LC-3SMB 041003 NO.3 23.825 52 22 10 40 51 5 96 81 177 330 12000 0.003
LC-4SMB 041004 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 213 1100 10000 0.003
LC-5SMB 041005 NO.5 44.399 82 40 16 65 75 6.5 146.5 129.5 276 2200 8000 0.005
▶ SMC-TYPE
※ 초경타입
Model Order Morse Dimension Weight R.P.M Run
Number Taper B L1 L2 L3 L4 L5 C
라이브센터 시리즈 GL A L MAX. MAX. Out
LC-3SMC 040103 NO.3 23.825 52 22 30 51 5 86 81 10 167 330 12000 0.003
LC-4SMC 040104 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 14 204 1100 10000 0.003
LC-5SMC 040105 NO.5 44.399 82 40 51 75 6.5 132.5 129.5 18 262 2200 8000 0.005
908
