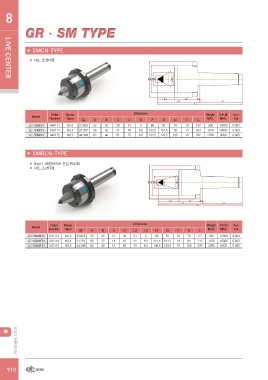

P. 910
LIVE CENTER8
GRㆍSM TYPE
▶ SMCN-TYPE
※ 너트, 초경타입
Model Order Morse GL A B C Dimension G N T Weight R.P.M Run
Number Taper DEF L MAX. MAX. Out
LC-3SMCN 040113 NO.3 23.825 52 22 30 51 5 86 81 70 10 167 300 12000 0.003
LC-4SMCN 040114 NO.4 31.267 66 32 41 55 6.5 102.5 101.5 85 14 204 1100 10000 0.003
LC-5SMCN 040115 NO.5 44.399 82 40 51 75 6.5 132.5 129.5 105 16 262 2200 8000 0.005
▶ SMBCN-TYPE
※ SHAFT 확장(바이트 간섭 최소화)
※ 너트, 초경타입
Model Order Morse GL A B Dimension N Weight R.P.M Run
Number Taper b L1 L2 L3 L4 L5 C L MAX. MAX. Out
LC-3SMBCN 041113 NO.3 23.825 52 22 10 40 51 5 96 81 10 70 177 330 12000 0.003
LC-4SMBCN 041114 NO.4 31.267 66 32 14 50 55 6.5 111.5 101.5 14 85 213 1100 10000 0.003
LC-5SMBCN 041115 NO.5 44.399 82 40 16 65 75 6.5 146.5 129.5 16 105 276 2200 8000 0.005
라이브센터 시리즈
910
