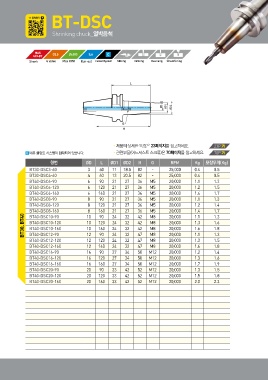

Page 65 - dain

BT-DSC

Shrinking chuck_열박음척

MAS G2.5 25,000 3㎛ Milling Drilling Reaming Chamfering
403-BT G value Max RPM Run-out Coolant System

Shank

내부 쿨런트 시스템이 탑재되어 있습니다.BT30, BT40 •제품의 상세한 특징은 23페이지를 참고하세요. 23P
ØD •관련부품(어드져스트 스크류)은 70페이지를 참고하세요. 70P
ØD1
ØD2형번ØDL ØD1 ØD2 H G RPM Kg 포장무게(Kg)

BT30-DSC3-60 3 60 11 18.5 82 - 25,000 0.4 0.5
BT30-DSC4-60 4 60 13 20.5 82 - 25,000 0.4 0.5
BT40-DSC6-90 6 90 21 27 36 M5 20,000 1.1 1.3
BT40-DSC6-120 6 120 21 27 36 M5 20,000 1.2 1.5
BT40-DSC6-160 6 160 21 27 36 M5 20,000 1.4 1.7
BT40-DSC8-90 8 90 21 27 36 M5 20,000 1.1 1.3
BT40-DSC8-120 8 120 21 27 36 M5 20,000 1.2 1.4
BT40-DSC8-160 8 160 21 27 36 M5 20,000 1.4 1.7
BT40-DSC10-90 10 90 24 32 42 M8 20,000 1.1 1.3
BT40-DSC10-120 10 120 24 32 42 M8 20,000 1.3 1.6
BT40-DSC10-160 10 160 24 32 42 M8 20,000 1.6 1.8
BT40-DSC12-90 12 90 24 32 47 M8 20,000 1.1 1.3
BT40-DSC12-120 12 120 24 32 47 M8 20,000 1.3 1.5
BT40-DSC12-160 12 160 24 32 47 M8 20,000 1.6 1.8
BT40-DSC16-90 16 90 27 34 50 M12 20,000 1.2 1.4
BT40-DSC16-120 16 120 27 34 50 M12 20,000 1.3 1.6
BT40-DSC16-160 16 160 27 34 50 M12 20,000 1.7 1.9
BT40-DSC20-90 20 90 33 42 52 M12 20,000 1.3 1.5
BT40-DSC20-120 20 120 33 42 52 M12 20,000 1.5 1.8
BT40-DSC20-160 20 160 33 42 52 M12 20,000 2.0 2.3
