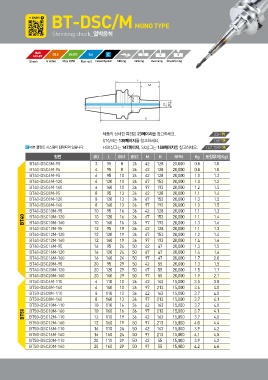

BT-DSC/M MONOTYPE

Shrinking chuck_열박음척

MAS G2.5 25,000 3㎛ Milling Drilling Reaming Chamfering
403-BT G value Max RPM Run-out Coolant System

Shank

L
M

ØD2
ØD
ØD1

H

내부 쿨런트 시스템이 탑재되어 있습니다. •제품의 상세한 특징은 23페이지를 참고하세요. 23P
•ST샹크는 138페이지를 참고하세요. 138P
형번 •HSK샹크는 147페이지, SK샹크는 159페이지를 참고하세요. 147,159P

BT40 BT40-DSC3M-95 ØD L ØD1 ØD2 M H RPM Kg 포장무게(Kg)
BT40-DSC4M-95
BT50 BT40-DSC6M-95 3 95 8 26 42 128 20,000 0.8 1.0
BT40-DSC6M-120 4 95 8 26 42 128 20,000 0.8 1.0
BT40-DSC6M-160 6 95 10 26 42 128 20,000 1.0 1.2
BT40-DSC8M-95 6 120 10 26 67 153 20,000 1.0 1.2
BT40-DSC8M-120 6 160 10 36 97 193 20,000 1.2 1.5
BT40-DSC8M-160 8 95 13 36 42 128 20,000 1.1 1.4
BT40-DSC10M-95 8 120 13 36 67 153 20,000 1.3 1.5
BT40-DSC10M-120 8 160 13 36 97 193 20,000 1.3 1.5
BT40-DSC10M-160 10 95 16 36 42 128 20,000 1.1 1.3
BT40-DSC12M-95 10 120 16 36 67 153 20,000 1.1 1.4
BT40-DSC12M-120 10 160 16 36 97 193 20,000 1.3 1.6
BT40-DSC12M-160 12 95 19 36 42 128 20,000 1.1 1.3
BT40-DSC16M-95 12 120 19 36 67 153 20,000 1.2 1.4
BT40-DSC16M-120 12 160 19 36 97 193 20,000 1.4 1.6
BT40-DSC16M-160 16 95 24 50 42 47 20,000 1.3 1.5
BT40-DSC20M-95 16 120 24 50 67 47 20,000 1.4 1.6
BT40-DSC20M-120 16 160 24 50 97 47 20,000 1.7 2.0
BT40-DSC20M-160 20 95 29 50 42 55 20,000 1.3 1.5
BT50-DSC6M-110 20 120 29 50 67 55 20,000 1.5 1.7
BT50-DSC6M-160 20 160 29 50 97 55 20,000 1.9 2.1
BT50-DSC8M-110 6 110 10 26 42 163 15,000 3.5 3.8
BT50-DSC8M-160 6 160 10 36 97 213 15,000 3.6 4.0
BT50-DSC10M-110 8 110 13 36 42 163 15,000 3.7 4.0
BT50-DSC10M-160 8 160 13 36 97 213 15,000 3.7 4.1
BT50-DSC12M-110 10 110 16 36 42 163 15,000 3.7 4.0
BT50-DSC12M-160 10 160 16 36 97 213 15,000 3.7 4.1
BT50-DSC16M-110 12 110 19 36 42 163 15,000 3.7 4.0
BT50-DSC16M-160 12 160 19 50 97 213 15,000 4.0 4.4
BT50-DSC20M-110 16 110 24 50 42 163 15,000 3.9 4.2
BT50-DSC20M-160 16 160 24 50 97 213 15,000 4.1 4.5
20 110 29 50 42 55 15,000 3.9 4.2
20 160 29 50 97 55 15,000 4.2 4.6
