P. 82

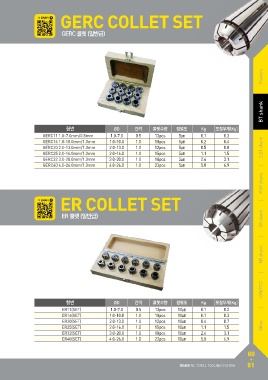

GERC COLLET SET
GERC 콜렛 (일반급)
Feature
BBTTsshaannkk
형번 ØD 간격 콜렛수량 정밀도 Kg 포장무게(Kg)
GERC11 1.0-7.0mm/0.5mm 1.0-7.0 0.5 13pcs 5㎛ 0.1 0.3 S,ST shank
GERC16 1.0-10.0mm/1.0mm 1.0-10.0 1.0 10pcs 5㎛ 0.2 0.4
GERC20 2.0-13.0mm/1.0mm 2.0-13.0 1.0 12pcs 5㎛ 0.5 0.8
GERC25 2.0-16.0mm/1.0mm 2.0-16.0 1.0 15pcs 5㎛ 1.1 1.5
GERC32 3.0-20.0mm/1.0mm 3.0-20.0 1.0 18pcs 5㎛ 2.6 3.1
GERC40 4.0-26.0mm/1.0mm 4.0-26.0 1.0 23pcs 5㎛ 5.8 6.9
HSK shank
ER COLLET SET SK shank
ER 콜렛 (일반급)
NT shank
cBN/PCD
형번 ØD 간격 콜렛수량 정밀도 Kg 포장무게(Kg)
ER11(SET) 1.0-7.0 0.5 13pcs 10㎛ 0.1 0.2 Other
ER16(SET) 1.0-10.0 1.0 10pcs 10㎛ 0.1 0.3
ER20(SET) 2.0-13.0 1.0 12pcs 10㎛ 0.4 0.7
ER25(SET) 2.0-16.0 1.0 15pcs 10㎛ 1.1 1.5
ER32(SET) 3.0-20.0 1.0 18pcs 10㎛ 2.6 3.1
ER40(SET) 4.0-26.0 1.0 23pcs 10㎛ 5.8 6.9
