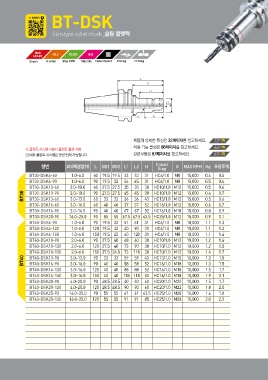

BT-DSK

Slim type collet chuck_슬림 콜렛척

MAS G6.3 15,000 Ø25 Milling Drilling
403-BT G value Max RPM Max Dia Coolant System

Shank

L
L2

L1

ØD2
ØD

ØD1

GH

※ 쿨런트 시스템 사용시 콜런트 콜렛 사용 •제품의 상세한 특징은 32페이지를 참고하세요. 32P
내부 쿨런트 시스템은 옵션 탑재 가능합니다. •적용 가능 콜렛은 86페이지를 참고하세요. 86P
•관련부품은 87페이지를 참고하세요. 87P

형번 ØD(체결범위) L ØD1 ØD2 L1 L2 H Collet/ G MAX RPM Kg 포장무게
Step
BT30-DSK6-60
BT30 BT30-DSK6-90 1.0~6.0 60 19.5 19.5 33 33 31 HC6/1.0 M8 15,000 0.4 0.5
BT30-DSK10-60 1.0~6.0 90 19.5 32 56 65 31 HC6/1.0 M8 15,000 0.5 0.6
BT40 BT30-DSK10-90 2.0~10.0 60 27.5 27.5 35 35 38 HC10/1.0 M12 15,000 0.5 0.6
BT30-DSK13-60 2.0~10.0 90 27.5 27.5 65 65 38 HC10/1.0 M12 15,000 0.6 0.7
BT30-DSK16-60 3.0~13.0 60 33 33 36 36 43 HC13/1.0 M12 15,000 0.5 0.6
BT30-DSK16-90 3.0~16.0 60 40 40 37 37 52 HC16/1.0 M12 15,000 0.6 0.7
BT30-DSK25-90 3.0~16.0 90 40 40 67 67 52 HC16/1.0 M18 15,000 0.8 0.9
BT40-DSK6-90 16.0~25.0 90 55 55 67.5 67.5 63.5 HC25/1.0 M12 15,000 0.9 1.1
BT40-DSK6-120 1.0~6.0 90 19.5 32 51 61 31 HC6/1.0 M8 10,000 1.1 1.3
BT40-DSK6-150 1.0~6.0 120 19.5 32 60 90 31 HC6/1.0 M8 10,000 1.1 1.3
BT40-DSK10-90 1.0~6.0 150 19.5 25 60 120 31 HC6/1.0 M8 10,000 1.1 1.4
BT40-DSK10-120 2.0~6.0 90 27.5 40 48 60 38 HC10/1.0 M12 10,000 1.2 1.4
BT40-DSK10-150 2.0~6.0 120 27.5 40 73 90 38 HC10/1.0 M12 10,000 1.2 1.5
BT40-DSK13-90 2.0~6.0 150 27.5 34.5 73 118 38 HC10/1.0 M12 10,000 1.4 1.7
BT40-DSK16-90 3.0~13.0 90 33 33 59 59 43 HC13/1.0 M15 10,000 1.3 1.5
BT40-DSK16-120 3.0~16.0 90 40 40 58 58 52 HC16/1.0 M18 10,000 1.3 1.5
BT40-DSK16-150 3.0~16.0 120 40 40 88 88 52 HC16/1.0 M18 10,000 1.5 1.7
BT40-DSK20-90 3.0~16.0 150 40 40 118 118 52 HC16/1.0 M18 10,000 1.9 2.1
BT40-DSK20-120 4.0~20.0 90 48.5 48.5 60 60 60 HC20/1.0 M22 10,000 1.5 1.7
BT40-DSK25-90 4.0~20.0 120 48.5 48.5 90 90 60 HC20/1.0 M22 10,000 1.8 2.0
BT40-DSK25-120 16.0~25.0 90 55 55 61 61 63.5 HC25/1.0 M28 10,000 1.6 1.8
16.0~25.0 120 55 55 91 91 85 HC25/1.0 M28 10,000 2.0 2.3
