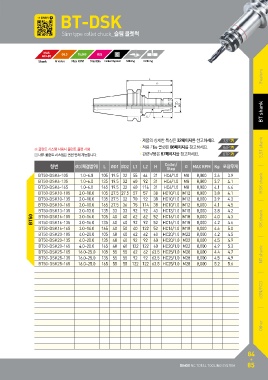

Page 86 - dain

BT-DSK

Slim type collet chuck_슬림 콜렛척

MAS G6.3 15,000 Ø25 Milling Drilling
403-BT G value Max RPM Max Dia Coolant System

Shank

L Feature
L2

L1

ØD2 BBTTsshaannkk
ØD

ØD1

GH

※ 쿨런트 시스템 사용시 콜런트 콜렛 사용 •제품의 상세한 특징은 32페이지를 참고하세요. 32P S,ST shank
내부 쿨런트 시스템은 옵션 탑재 가능합니다. •적용 가능 콜렛은 86페이지를 참고하세요. 86P
•관련부품은 87페이지를 참고하세요. 87P

형번 ØD(체결범위) L ØD1 ØD2 L1 L2 H Collet/ G MAX RPM Kg 포장무게
Step
BT50-DSK6-105
BT50-DSK6-135 1.0~6.0 105 19.5 32 55 64 31 HC6/1.0 M8 8,000 3.6 3.9 HSK shank
BT50-DSK6-165 1.0~6.0 135 19.5 32 60 92 31 HC6/1.0 M8 8,000 3.7 4.1
BT50 BT50-DSK10-105 1.0~6.0 165 19.5 32 60 114 31 HC6/1.0 M8 8,000 4.1 4.4 SK shank
BT50-DSK10-135 2.0~10.0 105 27.5 27.5 57 57 38 HC10/1.0 M12 8,000 3.8 4.1
BT50-DSK10-165 2.0~10.0 135 27.5 32 70 92 38 HC10/1.0 M12 8,000 3.9 4.3 NT shank
BT50-DSK13-135 2.0~10.0 165 27.5 36 75 114 38 HC10/1.0 M12 8,000 4.1 4.5
BT50-DSK16-105 3.0~13.0 135 33 33 92 92 43 HC13/1.0 M15 8,000 3.8 4.2
BT50-DSK16-135 3.0~16.0 105 40 40 62 62 52 HC16/1.0 M18 8,000 4.0 4.3
BT50-DSK16-165 3.0~16.0 135 40 40 92 92 52 HC16/1.0 M18 8,000 4.2 4.6
BT50-DSK20-105 3.0~16.0 165 40 50 40 122 52 HC16/1.0 M18 8,000 4.6 5.0
BT50-DSK20-135 4.0~20.0 105 48 40 62 62 60 HC20/1.0 M22 8,000 4.2 4.5
BT50-DSK20-165 4.0~20.0 135 48 40 92 92 60 HC20/1.0 M22 8,000 4.5 4.9
BT50-DSK25-105 4.0~20.0 165 48 40 122 122 60 HC20/1.0 M22 8,000 4.9 5.3
BT50-DSK25-135 16.0~25.0 105 55 55 62 62 63.5 HC25/1.0 M28 8,000 4.4 4.7
BT50-DSK25-165 16.0~25.0 135 55 55 92 92 63.5 HC25/1.0 M28 8,000 4.5 4.9
16.0~25.0 165 55 55 122 122 63.5 HC25/1.0 M28 8,000 5.2 5.6

cBN/PCD

Other
