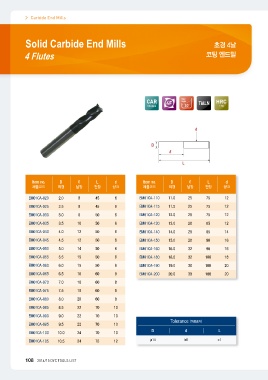

Page 110 - dyc

Carbide End Mills 초경 4날
코팅 엔드밀
Solid Carbide End Mills

4 Flutes

CAR TiALN HRCUltrafine4FHelix
Angle < 55

30°

Item no. D ℓ L d Item no. DℓL d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

EM01CA-020 2.0 6 45 6 EM01CA-110 11.0 25 75 12

EM01CA-025 2.5 8 45 6 EM01CA-115 11.5 25 75 12

EM01CA-030 3.0 8 50 6 EM01CA-120 12.0 28 75 12

EM01CA-035 3.5 10 50 6 EM01CA-130 13.0 28 85 12

EM01CA-040 4.0 12 50 6 EM01CA-140 14.0 28 85 14

EM01CA-045 4.5 12 50 6 EM01CA-150 15.0 28 90 16

EM01CA-050 5.0 14 50 6 EM01CA-160 16.0 32 90 16

EM01CA-055 5.5 15 50 6 EM01CA-180 18.0 32 100 18

EM01CA-060 6.0 15 50 6 EM01CA-190 19.0 38 100 20

EM01CA-065 6.5 18 60 8 EM01CA-200 20.0 38 100 20

EM01CA-070 7.0 18 60 8

EM01CA-075 7.5 18 60 8

EM01CA-080 8.0 20 60 8

EM01CA-085 8.5 22 70 10

EM01CA-090 9.0 22 70 10

EM01CA-095 9.5 22 70 10 Tolerance (허용공차)

EM01CA-100 10.0 24 70 10 Dd L

EM01CA-105 10.5 24 75 12 js14 h6 ±1

108 2014/15 DYC TOOLS LIST
