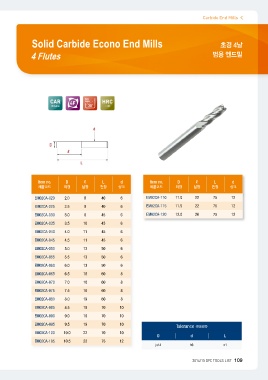

Solid Carbide Econo End Mills Carbide End Mills

4 Flutes 초경 4날
범용 엔드밀

CAR 4F HRCUltrafineHelix
Angle < 45

30°

Item no. D ℓ L d Item no. D ℓ L d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

EM02CA-020 2.0 6 40 6 EM02CA-110 11.0 22 75 12

EM02CA-025 2.5 8 40 6 EM02CA-115 11.5 22 75 12

EM02CA-030 3.0 8 45 6 EM02CA-120 12.0 26 75 12

EM02CA-035 3.5 10 45 6

EM02CA-040 4.0 11 45 6

EM02CA-045 4.5 11 45 6

EM02CA-050 5.0 13 50 6

EM02CA-055 5.5 13 50 6

EM02CA-060 6.0 13 50 6

EM02CA-065 6.5 16 60 8

EM02CA-070 7.0 16 60 8

EM02CA-075 7.5 16 60 8

EM02CA-080 8.0 19 60 8

EM02CA-085 8.5 19 70 10

EM02CA-090 9.0 19 70 10

EM02CA-095 9.5 19 70 10 Tolerance (허용공차)

EM02CA-100 10.0 22 70 10 Dd L

EM02CA-105 10.5 22 75 12 js14 h6 ±1

2014/15 DYC TOOLS LIST 109
