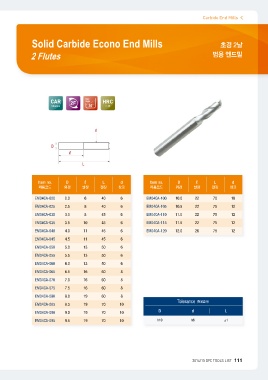

Solid Carbide Econo End Mills Carbide End Mills
2 Flutes 초경 2날
범용 엔드밀
CAR 2F HRCUltrafineHelix
Angle < 45
30°
Item no. Dℓ Ld Item no. DℓL d
제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크
EM04CA-020 2.0 6 40 6 EM04CA-100 10.0 22 70 10
EM04CA-025 2.5 8 40 6 EM04CA-105 10.5 22 75 12
EM04CA-030 3.0 8 45 6 EM04CA-110 11.0 22 75 12
EM04CA-035 3.5 10 45 6 EM04CA-115 11.5 22 75 12
EM04CA-040 4.0 11 45 6 EM04CA-120 12.0 26 75 12
EM04CA-045 4.5 11 45 6
EM04CA-050 5.0 13 50 6
EM04CA-055 5.5 13 50 6
EM04CA-060 6.0 13 50 6
EM04CA-065 6.5 16 60 8
EM04CA-070 7.0 16 60 8
EM04CA-075 7.5 16 60 8
EM04CA-080 8.0 19 60 8
EM04CA-085 8.5 19 70 10 Tolerance (허용공차)
EM04CA-090 9.0 19 70 10 DdL
EM04CA-095 9.5 19 70 10 h10 h6 ±1
2014/15 DYC TOOLS LIST 111
