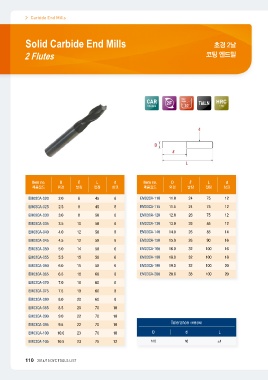

Carbide End Mills 초경 2날
코팅 엔드밀
Solid Carbide End Mills
2 Flutes
CAR TiALN HRCUltrafine2FHelix
Angle < 55
30°
Item no. D ℓ L d Item no. D ℓ L d
제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크
EM03CA-020 2.0 6 45 6 EM03CA-110 11.0 24 75 12
EM03CA-025 2.5 8 45 6 EM03CA-115 11.5 24 75 12
EM03CA-030 3.0 8 50 6 EM03CA-120 12.0 26 75 12
EM03CA-035 3.5 10 50 6 EM03CA-130 13.0 26 85 12
EM03CA-040 4.0 12 50 6 EM03CA-140 14.0 26 85 14
EM03CA-045 4.5 12 50 6 EM03CA-150 15.0 26 90 16
EM03CA-050 5.0 14 50 6 EM03CA-160 16.0 32 100 16
EM03CA-055 5.5 15 50 6 EM03CA-180 18.0 32 100 18
EM03CA-060 6.0 15 50 6 EM03CA-190 19.0 32 100 20
EM03CA-065 6.5 18 60 8 EM03CA-200 20.0 38 100 20
EM03CA-070 7.0 18 60 8
EM03CA-075 7.5 18 60 8
EM03CA-080 8.0 20 60 8
EM03CA-085 8.5 20 70 10
EM03CA-090 9.0 22 70 10
EM03CA-095 9.5 22 70 10 Tolerance (허용공차)
EM03CA-100 10.0 23 70 10 DdL
EM03CA-105 10.5 23 75 12 h10 h6 ±1
