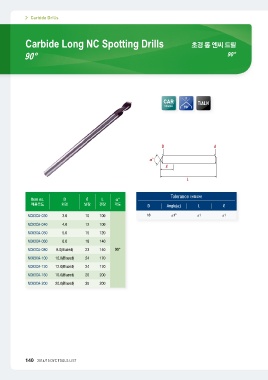

Carbide Drills 초경 롱 엔씨 드릴
90°
Carbide Long NC Spotting Drills
90°
CAR TiALN
Ultrafine 90°
Item no. D ℓ L α° Tolerance (허용공차) ℓ
제품코드 외경 날장 전장 각도 D Angle(α) L ±1
NC03CA-030 3.0 10 100 h8 ±1° ±1
NC03CA-040 4.0 12 100
NC03CA-050 5.0 15 120
NC03CA-060 6.0 18 140
NC03CA-080 8.0(Blazed) 23 140 90°
NC03CA-100 10.0(Blazed) 24 170
NC03CA-120 12.0(Blazed) 24 170
NC03CA-160 16.0(Blazed) 26 200
NC03CA-200 20.0(Blazed) 35 200
140 2014/15 DYC TOOLS LIST
