Carbide Drills 초경 엔씨 드릴
90°

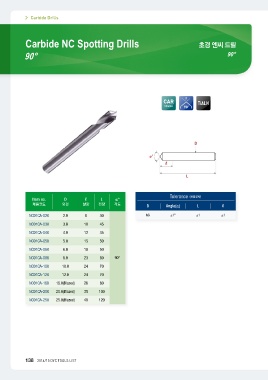

Carbide NC Spotting Drills
90°
CAR TiALN
Ultrafine 90°
Item no. D ℓ L α° Tolerance (허용공차) ℓ
제품코드 외경 날장 전장 각도 D Angle(α) L ±1
NC01CA-020 2.0 8 40 h8 ±1° ±1
NC01CA-030 3.0 10 45
NC01CA-040 4.0 12 45
NC01CA-050 5.0 15 50
NC01CA-060 6.0 18 50
NC01CA-080 8.0 23 60 90°
NC01CA-100 10.0 24 70
NC01CA-120 12.0 24 70
NC01CA-160 16.0(Blazed) 26 80
NC01CA-200 20.0(Blazed) 35 100
NC01CA-250 25.0(Blazed) 40 120
