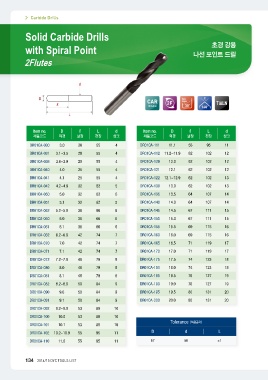

Page 136 - dyc

Carbide Drills 초경 강용
나선 포인트 드릴
Solid Carbide Drills
with Spiral Point

2Flutes

CAR 2FUltrafine Helix TiALN
Angle
140°
30°

Item no. D ℓ L d Item no. D ℓ L d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

DR01CA-030 3.0 20 55 4 DR01CA-111 11.1 55 95 11
DR01CA-031 3.1~3.5 20 55 4
DR01CA-036 3.6~3.9 25 55 4 DR01CA-112 11.2~11.9 62 102 12
DR01CA-040 25 55 4
4.0 DR01CA-120 12.0 62 102 12

DR01CA-121 12.1 62 102 12

DR01CA-041 4.1 25 55 4 DR01CA-122 12.1~12.9 62 102 13

DR01CA-042 4.2~4.9 32 62 5 DR01CA-130 13.0 62 102 13

DR01CA-050 5.0 32 62 5 DR01CA-135 13.5 64 107 14
DR01CA-051 5.1 32 62 5
DR01CA-052 5.2~5.9 36 66 6 DR01CA-140 14.0 64 107 14
DR01CA-060 6.0 36 66 6
DR01CA-145 14.5 67 111 15

DR01CA-150 15.0 67 111 15

DR01CA-061 6.1 36 66 6 DR01CA-155 15.5 69 115 16

DR01CA-062 6.2~6.9 42 74 7 DR01CA-160 16.0 69 115 16
DR01CA-070 7.0 42 74 7
DR01CA-071 7.1 42 74 7 DR01CA-165 16.5 71 119 17
DR01CA-072 46 79 8
7.2~7.9 DR01CA-170 17.0 71 119 17

DR01CA-175 17.5 74 123 18

DR01CA-080 8.0 46 79 8 DR01CA-180 18.0 74 123 18

DR01CA-081 8.1 46 79 8 DR01CA-185 18.5 76 127 19

DR01CA-082 8.2~8.9 50 84 9 DR01CA-190 19.0 76 127 19

DR01CA-090 9.0 50 84 9 DR01CA-195 19.5 80 131 20

DR01CA-091 9.1 50 84 9 DR01CA-200 20.0 80 131 20

DR01CA-092 9.2~9.9 53 89 10

DR01CA-100 10.0 53 89 10

DR01CA-101 10.1 53 89 10 Tolerance (허용공차)

DR01CA-102 10.2~10.9 55 95 11 DdL

DR01CA-110 11.0 55 95 11 h7 h6 ±1

134 2014/15 DYC TOOLS LIST
