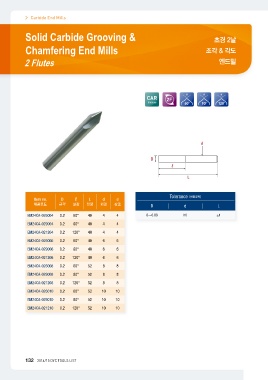

Page 134 - dyc

Carbide End Mills 초경 2날
조각 & 각도
Solid Carbide Grooving &
Chamfering End Mills 엔드밀

2 Flutes

CAR 2FUltrafine 60° 90° 120°

Item no. DℓL d d D Tolerance (허용공차) L

제품코드 규격 날장 전장 외경 샹크 0~-0.03 d ±1

EM24CA-026004 0.2 60° 40 4 4 h6

EM24CA-029004 0.2 90° 40 4 4

EM24CA-021204 0.2 120° 40 4 4

EM24CA-026006 0.2 60° 40 6 6

EM24CA-029006 0.2 90° 40 6 6

EM24CA-021206 0.2 120° 40 6 6

EM24CA-026008 0.2 60° 52 8 8

EM24CA-029008 0.2 90° 52 8 8

EM24CA-021208 0.2 120° 52 8 8

EM24CA-026010 0.2 60° 52 10 10

EM24CA-029010 0.2 90° 52 10 10

EM24CA-021210 0.2 120° 52 10 10

132 2014/15 DYC TOOLS LIST
