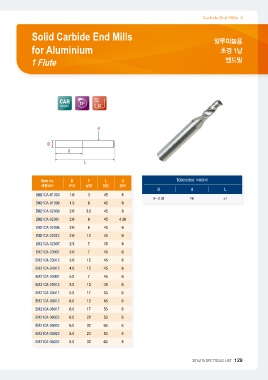

Solid Carbide End Mills Carbide End Mills
for Aluminium
알루미늄용
1 Flute 초경 1날
엔드밀

CAR 1FUltrafine Helix
Angle

30°

Item no. DℓL d Tolerance (허용공차)

제품코드 규격 날장 전장 샹크 D d L

EM21CA-01003 1.0 3 45 6 0~-0.03 h6 ±1

EM21CA-01506 1.5 6 45 6

EM21CA-02003 2.0 3.5 45 6

EM21CA-02061 2.0 6 45 4.36

EM21CA-02006 2.0 6 45 6

EM21CA-02012 2.0 12 45 6

EM21CA-02507 2.5 7 45 6

EM21CA-03007 3.0 7 45 6

EM21CA-03012 3.0 12 45 6

EM21CA-04012 4.0 12 45 6

EM21CA-05007 5.0 7 45 6

EM21CA-05012 5.0 12 45 6

EM21CA-05017 5.0 17 53 6

EM21CA-06012 6.0 12 45 6

EM21CA-06017 6.0 17 53 6

EM21CA-06022 6.0 22 53 6

EM21CA-06032 6.0 32 63 6

EM21CA-08023 8.0 23 53 8

EM21CA-08032 8.0 32 63 8

2014/15 DYC TOOLS LIST 129
