P. 126

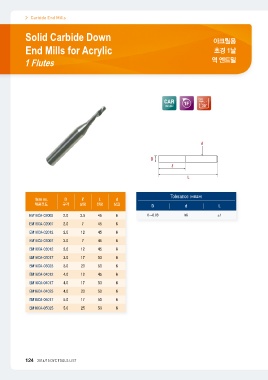

Carbide End Mills 아크릴용
초경 1날
Solid Carbide Down 역 엔드밀
End Mills for Acrylic
1 Flutes
CAR 1FUltrafine Helix
Angle
30°
Item no. DℓL d Tolerance (허용공차)
제품코드 규격 날장 전장 샹크 D d L
EM16CA-02003 2.0 3.5 45 6 0~-0.03 h6 ±1
6
EM16CA-02007 2.0 7 45 6
6
EM16CA-02012 2.0 12 45 6
6
EM16CA-03007 3.0 7 45 6
6
EM16CA-03012 3.0 12 45 6
6
EM16CA-03017 3.0 17 53 6
6
EM16CA-03023 3.0 23 53
EM16CA-04012 4.0 12 45
EM16CA-04017 4.0 17 53
EM16CA-04023 4.0 23 53
EM16CA-05017 5.0 17 53
EM16CA-05025 5.0 25 53
124 2014/15 DYC TOOLS LIST
