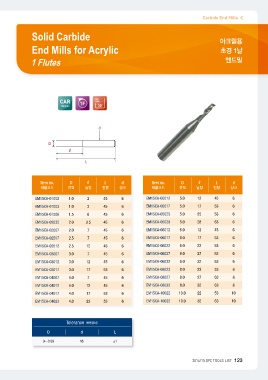

Solid Carbide Carbide End Mills
End Mills for Acrylic
아크릴용
1 Flutes 초경 1날

엔드밀

CAR 1FUltrafine Helix
Angle

30°

Item no. DℓL d Item no. DℓL d

제품코드 규격 날장 전장 샹크 제품코드 규격 날장 전장 샹크

EM15CA-01002 1.0 2 45 6 EM15CA-05012 5.0 12 45 6
EM15CA-01003 1.0 3 45 6
EM15CA-01506 1.5 6 45 6 EM15CA-05017 5.0 17 53 6
EM15CA-02035 2.0 3.5 45 6
EM15CA-02007 2.0 7 45 6 EM15CA-05025 5.0 25 53 6
EM15CA-02507 2.5 7 45 6
EM15CA-02512 2.5 12 45 6 EM15CA-05028 5.0 28 63 6
EM15CA-03007 3.0 7 45 6
EM15CA-03012 3.0 12 45 6 EM15CA-06012 6.0 12 45 6
EM15CA-03017 3.0 17 53 6
EM15CA-04007 4.0 7 45 6 EM15CA-06017 6.0 17 53 6
EM15CA-04012 4.0 12 45 6
EM15CA-04017 4.0 17 53 6 EM15CA-06022 6.0 22 53 6
EM15CA-04023 4.0 23 53 6
EM15CA-06027 6.0 27 63 6

EM15CA-06032 6.0 32 63 6

EM15CA-08023 8.0 23 53 8

EM15CA-08027 8.0 27 63 8

EM15CA-08032 8.0 32 63 8

EM15CA-10022 10.0 22 53 10

EM15CA-10032 10.0 32 63 10

D Tolerance (허용공차) L

0~-0.03 d ±1

h6

2014/15 DYC TOOLS LIST 123
