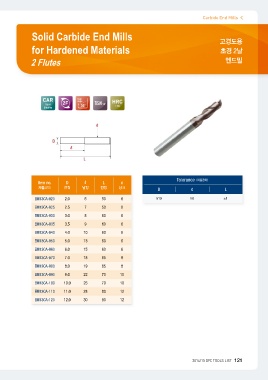

Solid Carbide End Mills Carbide End Mills
for Hardened Materials
고경도용
2 Flutes 초경 2날
엔드밀
CAR TiSiN- HRCSuper2FHelix < 65
Angle
Ultrafine
30°
Item no. D ℓ L d Tolerance (허용공차)
제품코드 규격 날장 전장 샹크 DdL
EM13CA-020 2.0 6 50 6 h10 h6 ±1
EM13CA-025 2.5 7 50 6
EM13CA-030 3.0 8 60 6
EM13CA-035 3.5 9 60 6
EM13CA-040 4.0 10 60 6
EM13CA-050 5.0 13 60 6
EM13CA-060 6.0 15 60 6
EM13CA-070 7.0 18 65 8
EM13CA-080 8.0 19 65 8
EM13CA-090 9.0 22 70 10
EM13CA-100 10.0 25 70 10
EM13CA-110 11.0 28 80 12
EM13CA-120 12.0 30 80 12
2014/15 DYC TOOLS LIST 121
