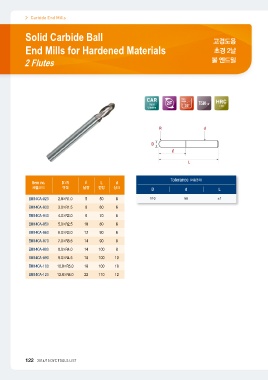

Page 124 - dyc

Carbide End Mills 고경도용
초경 2날
Solid Carbide Ball 볼 엔드밀
End Mills for Hardened Materials

2 Flutes

2FCAR TiSiN- HRCSuperHelix< 65
Angle
Ultrafine
30°

Item no. DXR ℓL d Tolerance (허용공차)

제품코드 규격 날장 전장 샹크 DdL

EM14CA-020 2.0×R1.0 5 50 6 h10 h6 ±1

EM14CA-030 3.0×R1.5 8 60 6

EM14CA-040 4.0×R2.0 8 70 6

EM14CA-050 5.0×R2.5 10 80 6

EM14CA-060 6.0×R3.0 12 90 6

EM14CA-070 7.0×R3.5 14 90 8

EM14CA-080 8.0×R4.0 14 100 8

EM14CA-090 9.0×R4.5 18 100 10

EM14CA-100 10.0×R5.0 18 100 10

EM14CA-120 12.0×R6.0 22 110 12

122 2014/15 DYC TOOLS LIST
