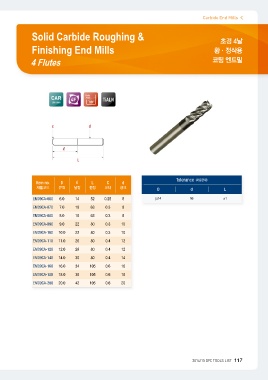

P. 119
Solid Carbide Roughing & Carbide End Mills
Finishing End Mills
초경 4날
4 Flutes 황·정삭용
코팅 엔드밀
CAR TiALNUltrafine4F Helix
Angle
30°
Item no. D ℓ L C d Tolerance (허용공차) L
제품코드 규격 날장 전장 코너 샹크 Dd ±1
EM09CA-060 6.0 14 52 0.25 6 js14 h6
EM09CA-070 7.0 18 63 0.3 8
EM09CA-080 8.0 18 63 0.3 8
EM09CA-090 9.0 22 80 0.3 10
EM09CA-100 10.0 22 80 0.3 10
EM09CA-110 11.0 26 80 0.4 12
EM09CA-120 12.0 26 80 0.4 12
EM09CA-140 14.0 30 80 0.4 14
EM09CA-160 16.0 34 105 0.6 16
EM09CA-180 18.0 38 105 0.6 18
EM09CA-200 20.0 42 105 0.6 20
2014/15 DYC TOOLS LIST 117
