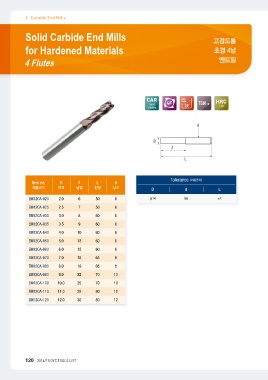

Page 122 - dyc

Carbide End Mills 고경도용
초경 4날
Solid Carbide End Mills
for Hardened Materials 엔드밀

4 Flutes

4FCAR TiSiN- HRCSuperHelix < 65
Angle
Ultrafine
30°

Item no. DℓL d Tolerance (허용공차)

제품코드 규격 날장 전장 샹크 Dd L

EM12CA-020 2.0 6 50 6 js14 h6 ±1

EM12CA-025 2.5 7 50 6

EM12CA-030 3.0 8 60 6

EM12CA-035 3.5 9 60 6

EM12CA-040 4.0 10 60 6

EM12CA-050 5.0 13 60 6

EM12CA-060 6.0 15 60 6

EM12CA-070 7.0 18 65 8

EM12CA-080 8.0 19 65 8

EM12CA-090 9.0 22 70 10

EM12CA-100 10.0 25 70 10

EM12CA-110 11.0 28 80 12

EM12CA-120 12.0 30 80 12

120 2014/15 DYC TOOLS LIST
