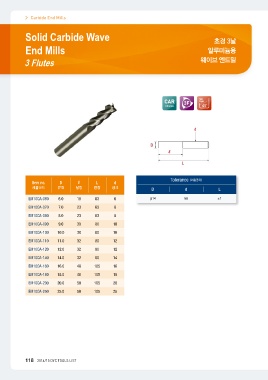

Page 120 - dyc

Carbide End Mills 초경 3날
알루미늄용
Solid Carbide Wave 웨이브 엔드밀
End Mills

3 Flutes

CAR 3FUltrafine Helix
Angle

45°

Item no. D ℓ L d Tolerance (허용공차)

제품코드 규격 날장 전장 샹크 Dd L

EM10CA-060 6.0 18 63 6 js14 h6 ±1

EM10CA-070 7.0 23 63 8

EM10CA-080 8.0 23 63 8

EM10CA-090 9.0 30 80 10

EM10CA-100 10.0 30 80 10

EM10CA-110 11.0 32 80 12

EM10CA-120 12.0 32 80 12

EM10CA-140 14.0 32 80 14

EM10CA-160 16.0 48 105 16

EM10CA-180 18.0 48 105 18

EM10CA-200 20.0 50 105 20

EM10CA-250 25.0 50 105 25

118 2014/15 DYC TOOLS LIST
