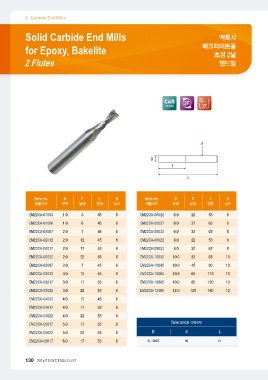

P. 132
Carbide End Mills 엑폭시
베크라이트용
Solid Carbide End Mills
for Epoxy, Bakelite 초경 2날
엔드밀
2 Flutes
CAR 2FUltrafine Helix
Angle
17°
Item no. DℓL d Item no. D ℓ Ld
제품코드 규격 날장 전장 샹크 제품코드 규격 날장 전장 샹크
EM22CA-01003 1.0 3 45 6 EM22CA-06022 6.0 22 53 6
EM22CA-01006 1.0 6 45 6 EM22CA-06027 6.0 27 63 6
EM22CA-02007 2.0 7 45 6 EM22CA-06032 6.0 32 63 6
EM22CA-02012 2.0 12 45 6 EM22CA-08022 8.0 22 53 8
EM22CA-02017 2.0 17 53 6 EM22CA-08032 8.0 32 63 8
EM22CA-02022 2.0 22 53 6 EM22CA-10032 10.0 32 63 10
EM22CA-03007 3.0 7 45 6 EM22CA-10045 10.0 45 80 10
EM22CA-03012 3.0 12 45 6 EM22CA-10065 10.0 65 110 10
EM22CA-03017 3.0 17 53 6 EM22CA-10085 10.0 85 130 10
EM22CA-03022 3.0 22 53 6 EM22CA-12105 12.0 105 160 12
EM22CA-04012 4.0 12 45 6
EM22CA-04017 4.0 17 53 6 D Tolerance (허용공차) L
EM22CA-04022 4.0 22 53 6
EM22CA-05017 5.0 17 53 6 0~-0.03 d ±1
EM22CA-05022 5.0 22 53 6
EM22CA-06017 6.0 17 53 6 h6
