P. 141

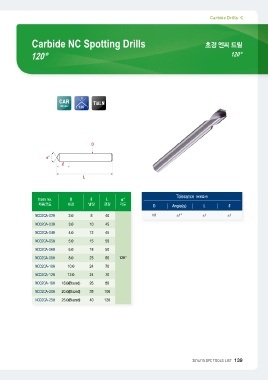

Carbide NC Spotting Drills                Carbide Drills

120°                                   초경 엔씨 드릴
                                                  120°

            CAR                 TiALN

             Ultrafine  120°

Item no.     D ℓ L α°                                Tolerance (허용공차)  ℓ

제품코드        외경 날장 전장 각도                D Angle(α) L                    ±1

NC02CA-020       2.0      8   40       h8 ±1° ±1
NC02CA-030       3.0      10  45
NC02CA-040       4.0      12  45
NC02CA-050       5.0      15  50
NC02CA-060       6.0      18  50
NC02CA-080       8.0      23  60 120°
NC02CA-100      10.0      24  70
NC02CA-120      12.0      24  70
NC02CA-160  16.0(Blazed)  26  80
NC02CA-200  20.0(Blazed)  35  100
NC02CA-250  25.0(Blazed)  40  120

                                       2014/15 DYC TOOLS LIST 139
