Carbide Drills

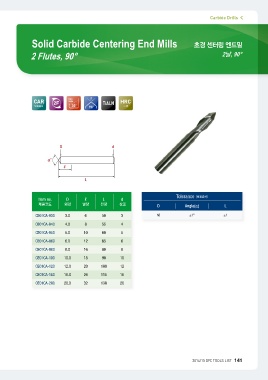

Solid Carbide Centering End Mills 초경 센터링 엔드밀
2 Flutes, 90° 2날, 90°
CAR 2FUltrafine Helix 90° TiALN HRC
Angle < 45
30°
Item no. DℓL d Tolerance (허용공차)
제품코드 외경 날장 전장 샹크 D Angle(α) L
CE01CA-030 3.0 6 50 3 h8 ±1° ±1
CE01CA-040 4.0 8 55 4
CE01CA-050 5.0 10 60 5
CE01CA-060 6.0 12 65 6
CE01CA-080 8.0 16 80 8
CE01CA-100 10.0 18 90 10
CE01CA-120 12.0 20 100 12
CE01CA-160 16.0 26 115 16
CE01CA-200 20.0 32 130 20
2014/15 DYC TOOLS LIST 141
