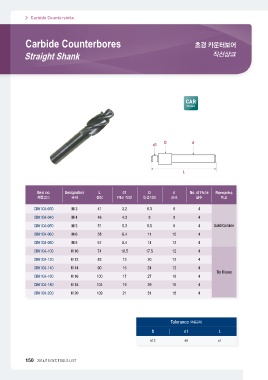

Carbide Countersinks 초경 카운터보어
직선샹크
Carbide Counterbores
CAR
Straight Shank
Ultrafine

Item no. Designation L d1 D d No. of Flute Remarks

제품코드 규격 전장 Pilot 직경 인선직경 샹크 날수 비고

CB01CA-030 M3 41 3.2 6.5 64
CB01CA-040 M4 46 4.3 8 84
CB01CA-050 M5 51 5.3 9.5 8 4 Solid Carbide
CB01CA-060 M6 58 6.4 11 10 4
CB01CA-080 M8 67 8.4 14 12 4
CB01CA-100 M 10 74 10.5 17.5 12 4
CB01CA-120 M 12 83 13 20 12 4
CB01CA-140 M 14 90 15 24 12 4
CB01CA-160 M 16 100 17 27
CB01CA-180 M 18 104 19 29 Tip Blazes
CB01CA-200 M 20 109 21 31 16 4
16 4
18 4

Tolerance (허용공차)

D d1 L

k12 e8 ±1

150 2014/15 DYC TOOLS LIST
