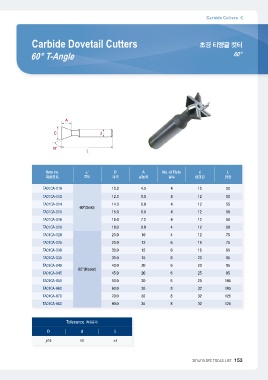

Carbide Dovetail Cutters Carbide Cutters
60° T-Angle 초경 티앵글 컷터
60°
Item no. α° D A No. of Flute d L
각도
제품코드 60°(Solid) 규격 날높이 날수 샹크경 전장
TA01CA-010 60°(Blazed) 10.0 4.5 4 10 50
TA01CA-012 12.0 5.5 4 12 52
TA01CA-014 14.0 6.0 4 12 55
TA01CA-015 15.0 6.8 4 12 58
TA01CA-016 16.0 7.2 4 12 58
TA01CA-018 18.0 8.0 4 12 60
TA01CA-020 20.0 10 4 12 75
TA01CA-025 25.0 12 6 16 75
TA01CA-030 30.0 12 6 16 85
TA01CA-035 35.0 15 6 20 85
TA01CA-040 40.0 20 6 20 95
TA01CA-045 45.0 20 6 25 95
TA01CA-050 50.0 20 6 25 105
TA01CA-060 60.0 30 8 32 105
TA01CA-070 70.0 32 8 32 125
TA01CA-080 80.0 35 8 32 125
Tolerance (허용공차) L
Dd ±1
js16 h8
2014/15 DYC TOOLS LIST 153
