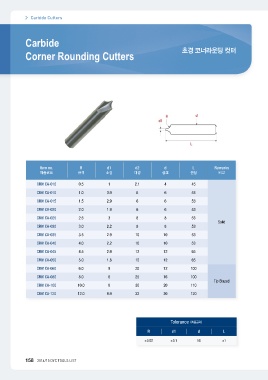

P. 160
Carbide Cutters 초경 코너라운딩 컷터
Carbide
Corner Rounding Cutters
Item no. R d1 d2 d L Remarks
제품코드 규격 소경 대경 샹크 전장 비고
CR01CA-010 0.5 1 2.1 4 45
CR01CA-010 1.0 3.9 6 6 53
CR01CA-015 1.5 2.9 6 6 53
CR01CA-020 2.0 1.9 6 6 53
CR01CA-025 2.5 3 8 8 53
CR01CA-030 3.0 2.2 8 Solid
8 53
CR01CA-035 3.5 2.9 10 10 53
CR01CA-040 4.0 2.2 10 10 53
CR01CA-045 4.5 2.9 12 12 65
CR01CA-050 5.0 1.8 12 12 65
CR01CA-060 6.0 8 20 12 100
CR01CA-080 8.0 8 25 16 100
CR01CA-100 10.0 8 Tip Blazed
30 20 110
CR01CA-120 12.0 8.9 33 20 120
R Tolerance (허용공차) L
±0.02 d1 d ±1
±0.1 h8
158 2014/15 DYC TOOLS LIST
