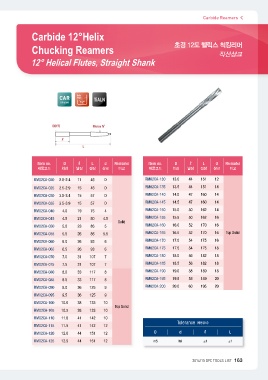

Carbide 12°Helix Carbide Reamers
Chucking Reamers
초경 12도 헬릭스 척킹리머
12° Helical Flutes, Straight Shank 직선샹크
CAR Helix TiALN
Angle
Ultrafine
12°
Item no. D ℓ L d Remarks Item no. D ℓL d Remarks
제품코드 외경 날장 전장 샹크 비고 제품코드 외경 날장 전장 샹크 비고
RM02CA-020 2.0-2.4 11 46 D RM02CA-130 13.0 44 151 12
RM02CA-135 13.5 44 151 14
RM02CA-025 2.5-2.9 15 46 D RM02CA-140 14.0 47 160 14
RM02CA-145 14.5 47 160 14
RM02CA-030 3.0-3.4 15 57 D RM02CA-150 15.0 50 162 14
RM02CA-155 15.5 50 162 16
RM02CA-035 3.5-3.9 15 57 D RM02CA-160 16.0 52 170 16
RM02CA-165 16.5 52 170 16 Top Solid
RM02CA-040 4.0 19 75 4 RM02CA-170 17.0 54 175 16
RM02CA-175 17.5 54 175 18
RM02CA-045 4.5 21 80 4.5 Solid RM02CA-180 18.0 56 182 18
RM02CA-050 5.0 RM02CA-185 18.5 56 182 18
23 86 5 RM02CA-190 19.0 58 189 18
RM02CA-195 19.5 58 189 20
RM02CA-055 5.5 26 86 5.5 RM02CA-200 20.0 60 195 20
RM02CA-060 6.0 26 93 6
RM02CA-065 6.5 26 93 6
RM02CA-070 7.0 31 107 7
RM02CA-075 7.5 31 107 7
RM02CA-080 8.0 33 117 8
RM02CA-085 8.5 33 117 8
RM02CA-090 9.0 36 125 9
RM02CA-095 9.5 36 125 9
RM02CA-100 10.0 38 133 10
RM02CA-105 10.5 Top Solid
38 133 10
RM02CA-110 11.0 41 142 10 Tolerance (허용공차)
D dℓL
RM02CA-115 11.5 41 142 12
m5 h8 ±1 ±1
RM02CA-120 12.0 44 151 12
