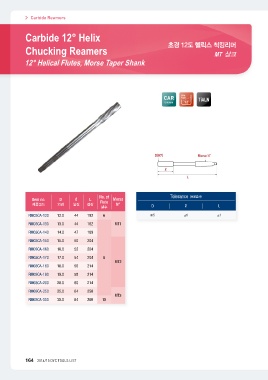

Carbide Reamers 초경 12도 헬릭스 척킹리머
MT 샹크
Carbide 12° Helix
Chucking Reamers

12° Helical Flutes, Morse Taper Shank

CAR Helix TiALN
Angle
Ultrafine
12°

Item no. D ℓ L No. of Morse Tolerance (허용공차)
Flute N° DℓL
제품코드 외경 날장 전장
날수 m5 ±1 ±1
RM03CA-120 12.0
RM03CA-130 13.0 44 182 6
RM03CA-140 14.0
RM03CA-150 15.0 44 182 MT1
RM03CA-160 16.0
RM03CA-170 17.0 47 189
RM03CA-180 18.0
RM03CA-190 19.0 50 204
RM03CA-200 20.0
RM03CA-250 25.0 52 204
RM03CA-300 30.0
54 204 8
MT2

56 214

58 214

60 214

64 250
MT3

64 280 10

164 2014/15 DYC TOOLS LIST
