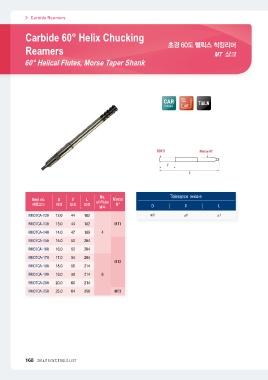

Carbide Reamers 초경 60도 헬릭스 척킹리머
MT 샹크
Carbide 60° Helix Chucking
Reamers
60° Helical Flutes, Morse Taper Shank
CAR Helix TiALN
Angle
Ultrafine
60°
Item no. D ℓ L No. Morse Tolerance (허용공차)
of Flute N° DℓL
제품코드 외경 날장 전장
날수 m5 ±1 ±1
RM07CA-120 12.0 44 182
RM07CA-130 13.0 44 182 MT1
RM07CA-140 14.0 47 189 4
RM07CA-150 15.0 50 204
RM07CA-160 16.0 52 204
RM07CA-170 17.0 54 204 MT2
RM07CA-180 18.0 56 214
RM07CA-190 19.0 58 214 6
RM07CA-200 20.0 60 214
RM07CA-250 25.0 64 250 MT3
