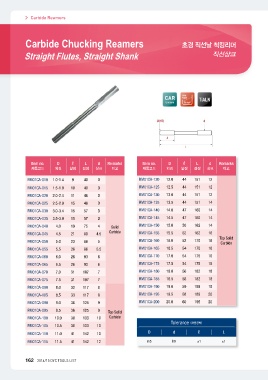

Carbide Reamers 초경 직선날 척킹리머
직선샹크
Carbide Chucking Reamers

Straight Flutes, Straight Shank

CAR Helix TiALN
Angle
Ultrafine
Straight

Item no. D ℓ L d Remarks Item no. D ℓL d Remarks

제품코드 외경 날장 전장 샹크 비고 제품코드 외경 날장 전장 샹크 비고

RM01CA-010 1.0-1.4 9 40 D RM01CA-120 12.0 44 151 12
RM01CA-125 12.5
RM01CA-015 1.5-1.9 10 40 D RM01CA-130 13.0 44 151 12
RM01CA-135 13.5
RM01CA-020 2.0-2.4 11 46 D RM01CA-140 14.0 44 151 12
RM01CA-145 14.5
RM01CA-025 2.5-2.9 15 46 D RM01CA-150 15.0 44 151 14
RM01CA-155 15.5
RM01CA-030 3.0-3.4 15 57 D RM01CA-160 16.0 47 160 14
RM01CA-165 16.5
RM01CA-035 3.5-3.9 15 57 D RM01CA-170 17.0 47 160 14
RM01CA-175 17.5
RM01CA-040 4.0 19 75 4 Solid RM01CA-180 18.0 50 162 14
RM01CA-045 4.5 RM01CA-185 18.5
21 80 4.5 Carbide RM01CA-190 19.0 52 162 16
RM01CA-195 19.5
RM01CA-050 5.0 23 86 5 RM01CA-200 20.0 52 170 16 Top Solid
Carbide

RM01CA-055 5.5 26 86 5.5 54 170 16

RM01CA-060 6.0 26 93 6 54 175 16

RM01CA-065 6.5 26 93 6 54 175 18

RM01CA-070 7.0 31 107 7 56 182 18

RM01CA-075 7.5 31 107 7 56 182 18

RM01CA-080 8.0 33 117 8 59 189 18

RM01CA-085 8.5 33 117 8 58 189 20

RM01CA-090 9.0 36 125 9 60 195 20

RM01CA-095 9.5 36 125 9 Top Solid Tolerance (허용공차)
RM01CA-100 10.0 38 133 10 Carbide D dℓL

RM01CA-105 10.5 38 133 10 m5 h8 ±1 ±1

RM01CA-110 11.0 41 142 10

RM01CA-115 11.5 41 142 12
