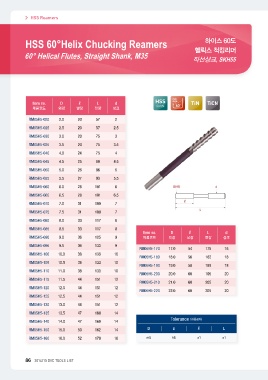

HSS Reamers 하이스 60도
헬릭스 척킹리머
HSS 60°Helix Chucking Reamers 직선샹크, SKH55
60° Helical Flutes, Straight Shank, M35
Item no. DℓL d HSS Helix TiN TiCN
Angle
제품코드 외경 날장 전장 샹크 Co 5%
60°
RM05H5-020 2.0 20 57 2
RM05H5-025 2.5 20 57 2.5
RM05H5-030 3.0 20 75 3
RM05H5-035 3.5 20 75 3.5
RM05H5-040 4.0 24 75 4
RM05H5-045 4.5 25 80 4.5
RM05H5-050 5.0 26 86 5
RM05H5-055 5.5 27 93 5.5
RM05H5-060 6.0 28 101 6
RM05H5-065 6.5 28 101 6.5
RM05H5-070 7.0 31 109 7
RM05H5-075 7.5 31 109 7
RM05H5-080 8.0 33 117 8
RM05H5-085 8.5 33 117 8 Item no. D ℓ L d
RM05H5-090 9.0 36 125 9 제품코드 외경 날장 전장 샹크
RM05H5-095 9.5 36 133 9 RM05H5-170 17.0 54 175 16
RM05H5-180 18.0 56 182 18
RM05H5-100 10.0 38 133 10 RM05H5-190 19.0 58 189 18
RM05H5-200 20.0 60 195 20
RM05H5-105 10.5 38 133 10 RM05H5-210 21.0 60 205 20
RM05H5-220 22.0 60 205 20
RM05H5-110 11.0 38 133 10
RM05H5-115 11.5 44 151 12
RM05H5-120 12.0 44 151 12
RM05H5-125 12.5 44 151 12
RM05H5-130 13.0 44 151 12
RM05H5-135 13.5 47 160 14
RM05H5-140 14.0 47 160 14 Tolerance (허용공차)
D dℓL
RM05H5-150 15.0 50 162 14
m5 h8 ±1 ±1
RM05H5-160 16.0 52 170 16
