P. 89

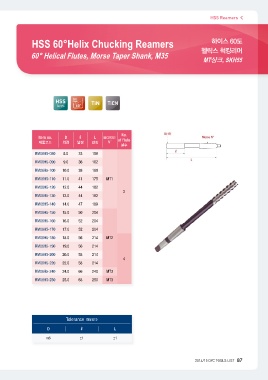

HSS 60°Helix Chucking Reamers HSS Reamers
60° Helical Flutes, Morse Taper Shank, M35 하이스 60도
헬릭스 척킹리머
MT샹크, SKH55
HSS Helix TiN TiCN
Angle
Co 5%
60°
Item no. D ℓ L MORSE No.
N° of Flute
제품코드 외경 날장 전장
날수
RM06H5-080 8.0 33 156
RM06H5-090 9.0 36 162
RM06H5-100 10.0 38 168
RM06H5-110 11.0 41 175 MT1
RM06H5-120 12.0 44 182 3
RM06H5-130 13.0 44 182
RM06H5-140 14.0 47 189
RM06H5-150 15.0 50 204
RM06H5-160 16.0 52 204
RM06H5-170 17.0 52 204
RM06H5-180 18.0 56 214 MT2
RM06H5-190 19.0 56 214
RM06H5-200 20.0 58 214 4
RM06H5-220 22.0 58 214
RM06H5-240 24.0 66 240 MT3
RM06H5-250 25.0 68 250 MT3
Tolerance (허용공차)
DℓL
m5 ±1 ±1
2014/15 DYC TOOLS LIST 87
