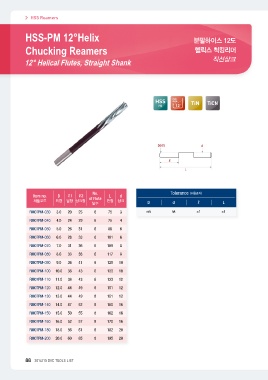

HSS Reamers 분말하이스 12도
헬릭스 척킹리머
HSS-PM 12°Helix
Chucking Reamers 직선샹크

12° Helical Flutes, Straight Shank

HSS Helix TiN TiCN
PM Angle

12°

Item no. D ℓ1 ℓ2 No. Ld Tolerance (허용공차)
of Flute D dℓL
제품코드 외경 날장 샹크장 전장 샹크
날수 m5 h8 ±1 ±1

RM07PM-030 3.0 20 25 6 75 3

RM07PM-040 4.0 24 29 6 75 4

RM07PM-050 5.0 26 31 6 86 6

RM07PM-060 6.0 28 33 6 101 6

RM07PM-070 7.0 31 36 6 109 8

RM07PM-080 8.0 33 38 6 117 8

RM07PM-090 9.0 36 41 6 125 10

RM07PM-100 10.0 38 43 6 133 10

RM07PM-110 11.0 38 43 6 133 12

RM07PM-120 12.0 44 49 6 151 12

RM07PM-130 13.0 44 49 8 151 12

RM07PM-140 14.0 47 52 8 160 16

RM07PM-150 15.0 50 55 8 162 16

RM07PM-160 16.0 52 57 8 170 16

RM07PM-180 18.0 56 61 8 182 20

RM07PM-200 20.0 60 65 8 195 20

88 2014/15 DYC TOOLS LIST
