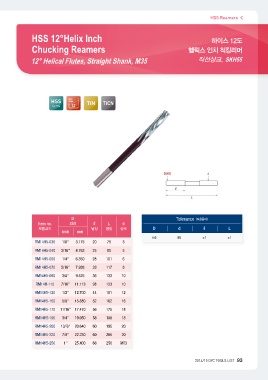

P. 95
HSS 12°Helix Inch HSS Reamers
Chucking Reamers
하이스 12도
12° Helical Flutes, Straight Shank, M35 헬릭스 인치 척킹리머
직선샹크, SKH55
HSS Helix TiN TiCN
Angle
Co 5%
12°
D ℓL Tolerance (허용공차)
D dℓL
Item no. 외경 d
m5 h8 ±1 ±1
제품코드 Inch mm 날장 전장 샹크
2014/15 DYC TOOLS LIST 93
RM14H5-030 1/8'' 3.175 20 75 3
RM14H5-040 3/16'' 4.763 25 80 5
RM14H5-060 1/4'' 6.350 28 101 6
RM14H5-070 5/16'' 7.938 33 117 8
RM14H5-090 3/8'' 9.525 36 133 10
RM14H-110 7/16'' 11.113 38 133 10
RM14H5-120 1/2'' 12.700 44 151 12
RM14H5-150 5/8'' 15.880 52 162 16
RM14H5-170 11/16'' 17.470 56 175 18
RM14H5-190 3/4'' 19.050 58 189 18
RM14H5-200 13/`6'' 20.640 60 195 20
RM14H5-220 7/8'' 22.230 60 205 20
RM14H5-250 1'' 25.400 68 250 MT3
