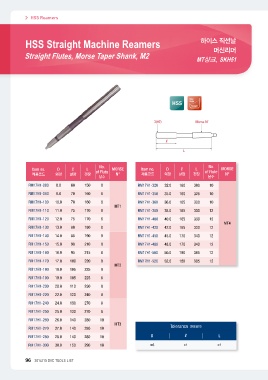

P. 98
HSS Reamers 하이스 직선날
머신리머
HSS Straight Machine Reamers
MT샹크, SKH51
Straight Flutes, Morse Taper Shank, M2
HSS Helix
Angle
Straight
Item no. D ℓ L No. MORSE Item no. D ℓ L No. MORSE
of Flute N° of Flute N°
제품코드 외경 날장 전장 제품코드 외경 날장 전장
날수 날수
RM17H1-080 8.0 60 150 6 RM17H1-320 32.0 160 300 10
RM17H1-090 9.0 70 160 6 RM17H1-350 35.0 160 325 10
RM17H1-100 10.0 70 160 6 MT1 RM17H1-360 36.0 165 330 10
RM17H1-110 11.0 75 170 6
RM17H1-380 38.0 165 330 12
RM17H1-120 12.0 75 170 6 RM17H1-400 40.0 165 330 12 MT4
RM17H1-420 42.0 165 330 12
RM17H1-130 13.0 80 180 8
RM17H1-140 14.0 85 190 8 RM17H1-450 45.0 170 340 12
RM17H1-150 15.0 90 210 8 RM17H1-480 48.0 170 340 12
RM17H1-160 16.0 95 215 8 RM17H1-500 50.0 180 385 12
RM17H1-170 17.0 100 220 8 MT2 RM17H1-520 52.0 180 385 12
RM17H1-180 18.0 105 225 8
RM17H1-190 19.0 105 225 8
RM17H1-200 20.0 110 230 8
RM17H1-220 22.0 120 240 8
RM17H1-240 24.0 130 270 8
RM17H1-250 25.0 130 270 8
RM17H1-260 26.0 140 280 10 MT3 Tolerance (허용공차)
RM17H1-270 27.0 140 280 10 DℓL
RM17H1-280 28.0 140 280 10 m5 ±1 ±1
RM17H1-300 30.0 150 290 10
96 2014/15 DYC TOOLS LIST
