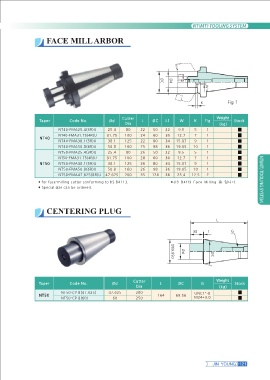

Page 135 - jinyoung

FACE MILL ARBOR

W

Ød
ØC

K Fig 1

Taper Code No. Ød Cutter L ØC L1 W K Fig Weight Stock
NT40 Dia
(kg)
NT50
NT40-FMA25.4(3R)U 25.4 80 22 50 22 9.5 5 1

NT40-FMA31.75(4R)U 31.75 100 24 60 30 12.7 7 1

NT40-FMA38.1(5R)U 38.1 125 22 80 34 15.87 9 1

NT40-FMA50.8(6R)U 50.8 160 25 98 36 19.05 10 1

NT50-FMA25.4(3R)U 25.4 80 26 50 22 9.5 5 1

NT50-FMA31.75(4R)U 31.75 100 28 60 30 12.7 NT(MT) TOOLING SYSTEM71

NT50-FMA38.1(5R)U 38.1 125 26 80 34 15.87 9 ØC1
Ød
NT50-FMA50.8(6R)U 50.8 160 26 98 36 19.05 10 1 Ø69.850

NT50-FMA47.625(8R)U 47.625 200 35 128 38 25.4 12.5 2

for face-milling cutter conforming to JIS B4113. JIS B4113 Face Milling 용 입니다.
Special size can be ordered.

CENTERING PLUG

L G
38 1

Taper Code No. Ød Cutter L ØC Weight
NT50 Dia G Stock
NT50-CP 8(47.625) 47.625
NT50-CP 8(60) 60 200 (kg)
250
164 69.56 UNC1"-8
M24*3.0

JIN YOUNG 121
