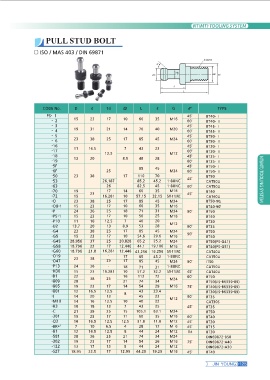

PULL STUD BOLT

ISO / MAS 403 / DIN 69871

CODE No. D d 1d d2 L G TYPE

PS- 1 15 23 17 10 60 35 M16 45 BT40-
-2 60 BT40-
-3 19 31 21 14 70 40 M20 45 BT45-
-4 60 BT45-
-5 23 38 25 17 85 45 M24 45 BT50-
-6 12.5 7 43 60 BT50-
-16 11 16.5 8.5 48 23 45 BT30-
-17 M12 60 BT30- NT(MT) TOOLING SYSTEM
-18 13 20 45 BT35-
-19 28 60 BT35-
-5F 23 38 45 BT50-
-6F 25 85 45 M24 60 BT50-
-50 19 23 45 BT50
-53 15 26.187 17 110 70 1-8UNC 60 CAT50U
-63 23 38 26 85.2 45.2 1-8UNC 45 CAT50U
-70 15 23 17 14 82.5 45 BT40
-72 24 36 10 60 35 M16 90 CAT40U
-O 15 23 16.281 17 57.15 32.15 5/8-11UNC BT50-90
-O8-1 11 16 25 10 85 45 60 BT40-90
-P 13.7 20 17 18 60 35 M24 90 BT50
-P5-1 23 38 25 10 71 31 M16 BT40
-P10 15 23 17 7 50 25 M24 45 BT30
-U2 28.956 37 12.5 8.9 40 20 M16 BT35
-G4 18.796 22 13 17 53 28 90 BT50
-G5 18.796 21.8 25 10 85 45 M12 BT40
-G45 17 20.828 54.6 29.6 45 BT50(PS-G41)
-G58 23 38 25 12.446 65.2 25.2 M24 60 BT40(PS-G51)
-G60 17 12.446 44.1 19.106 M16 CAT40U
-O19 24 36 17 16.256 M24 75 CAT50U
-O47 15 23 16.281 17 41.256 45.2 M16 IT50
-P13 22 38 - 85 45 5/8-11UNC 90 CAT50U
-H30 28 25 18 85 1-8UNC CAT40U
-B1 19 23 10 31 M24 45 BT50
-809 12 16.5 - 16 71 32.2 1-8UNC BT50(JIS-B6339-89)
-805 14 20 16.281 21 57.2 72 5/8-11UNC 60 BT40(JIS-B6339-89)
-801 14 16 14 112 34 45 BT30(JIS-B6339-89)
-J 10 18 25 74 29 M24 45 BT35
-M10 21 39 8 54 23.4 CAT30S
-R3 15 23 17 43 23 M16 75 BT35
-C 16 16.5 12.5 10 45 22 BT50
-301 7 10 13 7 40 25 M12 45 BT40
-Q3 12 16.5 12.5 15 43 63.1 BT30
-BR*1 28 36 13 11 105.1 35 M24 BT15
-81 19 23 25 12.5 60 11.8 M16 BT30
-581 13 17 17 4 31.8 17 M12 DIN69872-B50
-302 18.95 22.5 12.5 8 28 24 M6 DIN69872-A40
-122 6.5 21 44 34 M12 DIN69872-A30
-S27 12.5 14 74 26 M24 BT40
25 9 54 24 M16
17 12.95 44 19.25 M12 JIN YOUNG 125
13 44.25 M16
