JINYOUNG TOOL TECH

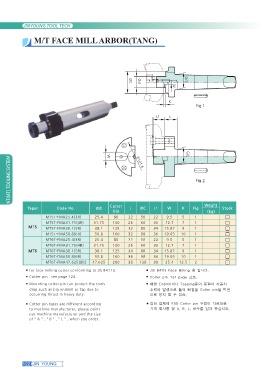

M/T FACE MILL ARBOR(TANG)

G/L
W

Ød
ØC

K Fig 1
L1 L

NT(MT) TOOLING SYSTEM G/L

Ø101.6
W

Fig 2

Taper Code No. Ød Cutter L ØC L1 W K Fig Weight Stock
MT5 Dia
MT6 (kg)

MT5T-FMA25.4(3R) 25.4 80 22 50 22 9.5 5 1

MT5T-FMA31.75(4R) 31.75 100 26 60 30 12.7 7 1

MT5T-FMA38.1(5R) 38.1 125 32 80 34 15.87 9 1

MT5T-FMA50.8(6R) 50.8 160 32 98 36 19.05 10 1

MT6T-FMA25.4(3R) 25.4 80 22 50 22 9.5 5 1

MT6T-FMA31.75(4R) 31.75 100 26 60 30 12.7 7 1

MT6T-FMA38.1(5R) 38.1 125 34 80 34 15.87 9 1

MT6T-FMA50.8(6R) 50.8 160 36 98 36 19.05 10 1

MT6T-FMA47.625(8R) 47.625 200 38 128 38 25.4 12.5 2

for face-milling cutter conforming to JIS B4113. JIS B4113 Face Milling 용 입니다.
Cotter pin : see page 124.
Cotter pin :124 page 참조.
Mounting cotter pin can protect the tools
drap,such as big endmill or tap due to 대형 Endmill이나 Tapping등의 중절삭 가공시
occurring thrust in heavy duty. 추력의 발생으로 툴의 빠짐을 Cotter pin을 박음
으로 방지 할 수 있슴,

Cotter pin types are different according 장비 업체에 따라 Cotter pin 구멍이 다르므로
to machine manufacturer, please point 기계 회사명 및 A, B, L, 치수를 알려 주십시요.
out machine manufacturer and the size
of " A " , " B " , " L " , when you order.

122 JIN YOUNG
