JINYOUNG TOOL TECH

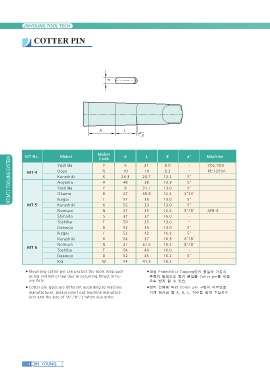

COTTER PIN

B

AL

a°

NT(MT) TOOLING SYSTEM MT No. Maker Maker A L B a° Machine
MT 4 Code YD2,YD3
MT 5 Yoshida 9 21 8.0 - RE-1250A
Ooya Y 10 10 8.2 -
MT 6 Kurashiki O 26.3 28.7 12.2 5° AFB-4
Aoyama K 48 38 13.3 5°
Yoshida A 9 31.7 13.0 5°
Okuma Y 27 38.8 12.2 3°30'
Ikegai B 52 33 13.0 5°
Kurashiki I 52 33 13.0 5°
Nomura K 27 35 12.2 8°18'
Shinada N 37 37 16.0 -
Toshiba S 50 35 13.0 -
Daewoo T 52 33 13.0 5°
Ikegai D 52 42 16.2 5°
Kurashiki I 54 37 16.3 8°18'
Nomura K 27 37.6 16.2 8°18'
Toshiba N 54 40 16.0 -
Daewoo T 52 45 16.2 5°
Kia D 54 41.3 16.2 -
W

Mounting cotter pin can protect the tools drap,such 대형 Endmill이나 Tapping등의 중절삭 가공시
as big endmill or tap due to occurring thrust in he- 추력의 발생으로 툴의 빠짐을 Cotter pin을 박음
avy duty. 으로 방지 할 수 있슴,

Cotter pin types are different according to machine 장비 업체에 따라 Cotter pin 구멍이 다르므로
manufacturer, please point out machine manufact- 기계 회사명 및 A, B, L, 치수를 알려 주십시요.
urer and the size of "A","B","L"when you order.
