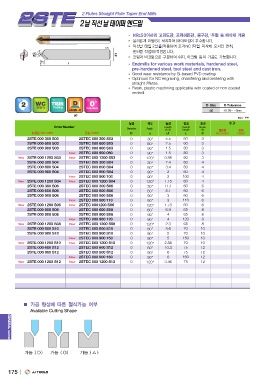

2 Flutes Straight Flute Taper End Mills

2

Endmills for various work materials, hardened steel,
pre-hardened steel, tool steel and cast iron.
Good wear resistance by Si-based PVD coating.
Optimum for NC engraving, chamfering and centering with
straight 2flutes.
Resin, plastic machining applicable witn coated or non coated
endmill.

0.05 0 D Size D Tolerance
0 0 +0 .05~ -0mm

mm

Order Number Diameter Angle Length Overall Shank
of cut Length Dia
Non coated Coated D 30 L1 d Non coated Coated
60 L
2STE 000 300 S03 2STEC 000 300 S03 0 90 5.5 3
2STE 000 600 S03 2STEC 000 600 S03 0 90 2.5 60 3
2STE 000 900 S03 2STEC 000 900 S03 0 120 1.5 60 3
New 2STEC 000 900 080 0 30 1.5 60 3
New 2STE 000 1200 S03 New 2STEC 000 1200 S03 0 60 0.86 80 3
2STE 000 300 S04 2STEC 000 300 S04 0 90 7.4 60 4
2STE 000 600 S04 2STEC 000 600 S04 0 90 3.4 60 4
2STE 000 900 S04 2STEC 000 900 S04 0 120 2 60 4
New 2STEC 000 900 100 0 30 2 60 4
New 2STE 000 1200 S04 New 2STEC 000 1200 S04 0 60 1.15 100 4
2STE 000 300 S06 2STEC 000 300 S06 0 90 11.1 60 6
2STE 000 600 S06 2STEC 000 600 S06 0 90 5.1 60 6
2STE 000 900 S06 2STEC 000 900 S06 0 120 3 60 6
New 2STEC 000 900 110 0 60 3 60 6
New 2STE 000 1200 S06 New 2STEC 0001200 S06 0 90 1.73 110 6
2STE 000 600 S08 2STEC 000 600 S08 0 90 6.9 60 8
2STE 000 900 S08 2STEC 000 900 S08 0 120 4 65 8
New 2STEC 000 900 120 0 60 4 65 8
New 2STE 000 1200 S08 New 2STEC 000 1200 S08 0 90 2.3 120 8
2STE 000 600 S10 2STEC 000 600 S10 0 90 8.6 65 10
2STE 000 900 S10 2STEC 000 900 S10 0 120 5 70 10
New 2STEC 000 900 150 0 60 5 70 10
New 2STE 000 1200 S10 New 2STEC 000 1200 S10 0 90 2.88 150 10
2STE 000 600 S12 2STEC 000 600 S12 0 90 10.3 70 12
2STE 000 900 S12 2STEC 000 900 S12 0 120 6 75 12
New 2STEC 000 900 160 0 6 75 12
New 2STE 000 1200 S12 New 2STEC 000 1200 S12 0 3.46 160 12
75

Available Cutting Shape

GENERAL PURPOSE

175 JJ TOOLS
